How it works
Capturing, measuring and calculation: "3 in 1 step" to get the dimensions
Sizensor* utilizes the handheld device camera to detect the cuboid box, gets distance from the laser measure through Bluetooth, and then calculates the dimensions according the handheld device's pitch angle. All processes are integrated by the Sizensor App.
* The App is currently only for Android OS handheld devices.
It's Total Solution
Sizensor offers Hardware and Software Package as Single Solution
Demo Video
- Hardware OptionsMiniaturized distance measurement modules comprising the laser, detector and signal processing circuitry

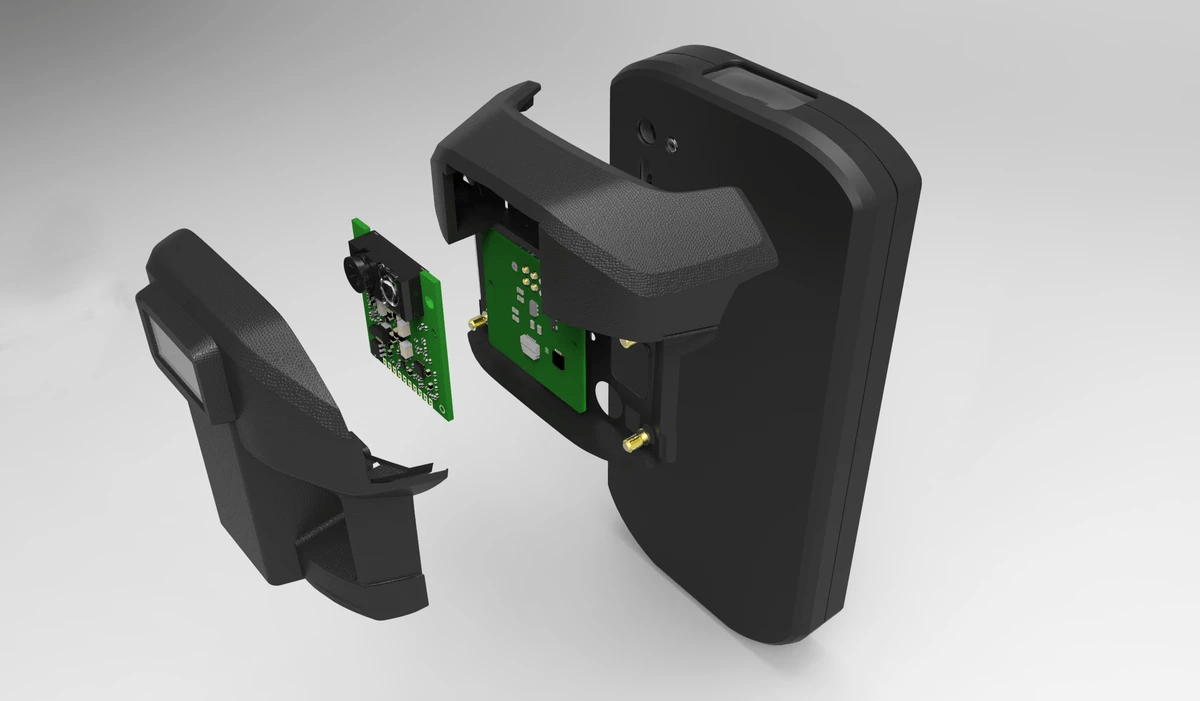

Add-On Accessory Parts
We work with system device providers to develop customized, attachable unit as ready to market accessory option to existing product lines.

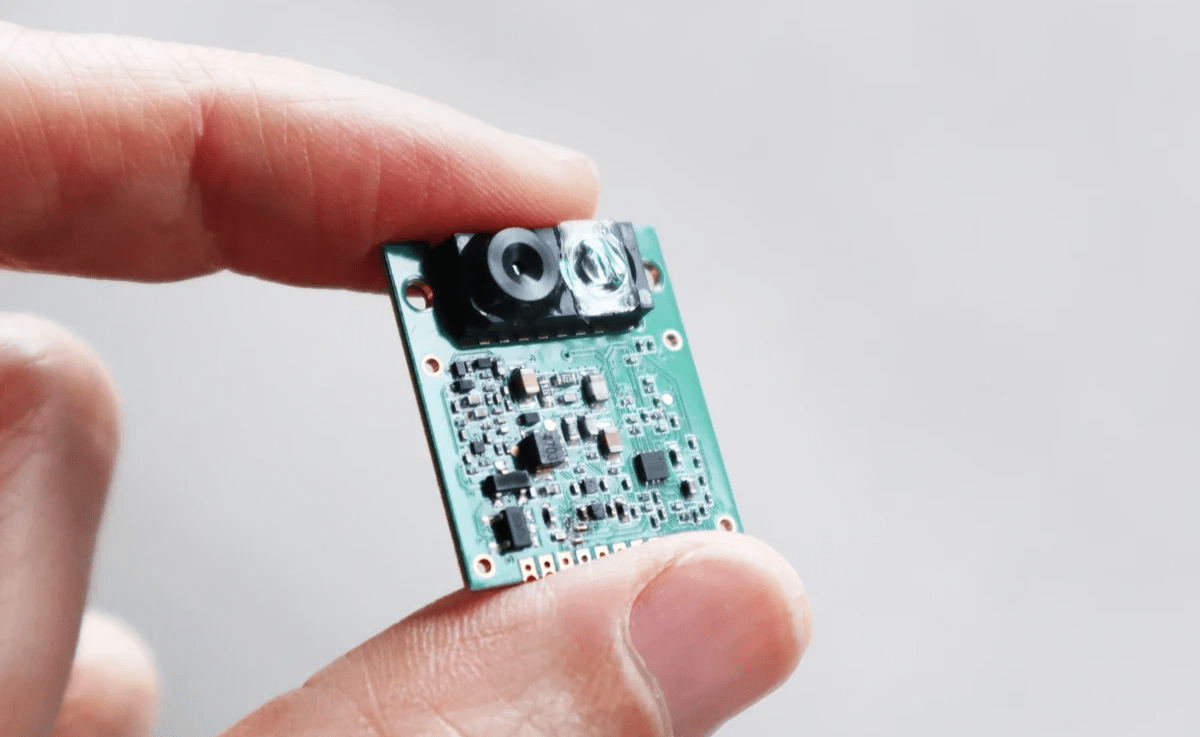

Build-In Mini Lidar Module
The smallest single direction mini lidar unit in the industry, ideal for device design in, such as rugged phones or handheld computers.
Visit the Wiseome Mini Lidar site for more information : Wiseome Mini Lidar

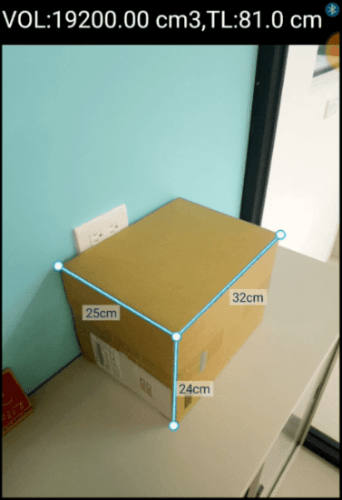

1. Capturing
Automatic box recognition
Sizensor proprietary image analysis algorithm recognizes cuboid boxes, and defines its three edges (for size measurement) within seconds. It uses the handheld device's 2D camera only. Simply align the blue spot on the front corner, shoot the laser, then the box will be quickly recognized.
2. Measuring
Laser guided distance measured
When the Capturing process is initiated, the distance between the handheld device and the box’s top surface is also obtained simultaneously by the laser measure. It is the essential reference for next step - dimension calculation.
Notice: The box needs to be placed on a level surface.
3. Calculation
Cuboid dimensioning by 3D photogrammetry
Sizensor's proprietary
"laser-assist 3D photogrammetry" algorithm transforms the photo's pixels into a 3D space coordinates from the distance measured in last step and the pitch angle of the handheld device. The cuboid box dimensions are then calculated from the 3D space coordinates.
Our 3 Key Technologies
Smart Recognition
Quick
Automatically recognize the box within a couple of seconds.
Laser Measure
Accurate
The most accurate measurement technology available for handheld applications.
3D Photogrammetry
Simple
Calculated the box's L x W x H, directly from a single point distance and a 2D photo.
